ANCEL PB500 Automotive Power Circuit Probe Tester Kit, 12/24V Car Electrical Short/Open Breaker Finder, AC/DC Diode Resistance Frequency Injector Relay Tester, Duty Cycle,Digital Multimeter/Ohmmeters
$119.99
Price when purchased online
Free shipping
Free 30-day returns
Sold and shipped by www.iptvsmarterespro.com
We aim to show you accurate product information. Manufacturers, suppliers and others provide what you see here.
$119.99
Price when purchased online
Free shipping
Free 30-day returns
Sold and shipped by www.iptvsmarterespro.com
Free 30-day returns Details
Product details
| Management number | 211732428 | Release Date | 2026/04/04 | List Price | $48.00 | Model Number | 211732428 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
- Pro-Level All-in-One Automotive Power Circuit Probe Tester: ANCEL PB500 probe tester elevates the classic PB100 by integrating a Circuit Tester, Injector Driver, Oscilloscope, and Multimeter into one advanced diagnostic tool. Capable of handling 0–110V DC systems, it provides DC/AC Voltage Testing, Resistance and Diode checks, Continuity and Polarity Verification, Component Activation, Duty-cycle and Signal Analysis, plus Relay and Fuse testing. Built for efficiency, the PB500 tester electric helps technicians diagnose electrical issues faster and with greater confidence—reducing tool swapping and streamlining every step of the workflow.
- 7-IN-1 Advanced Test Modes: The PB500 circuit probe tester delivers more capability than standard testers, combining seven key diagnostic modes in one tool—DC Voltage, AC Voltage, Resistance, Diode, Frequency, Duty Cycle, and Fuel Injection testing. Switch between modes to match any troubleshooting scenario, quickly separate bad circuits from good ones, and dramatically speed up your diagnostic workflow. It helps you zero in on the true cause of electrical issues with clarity and confidence.

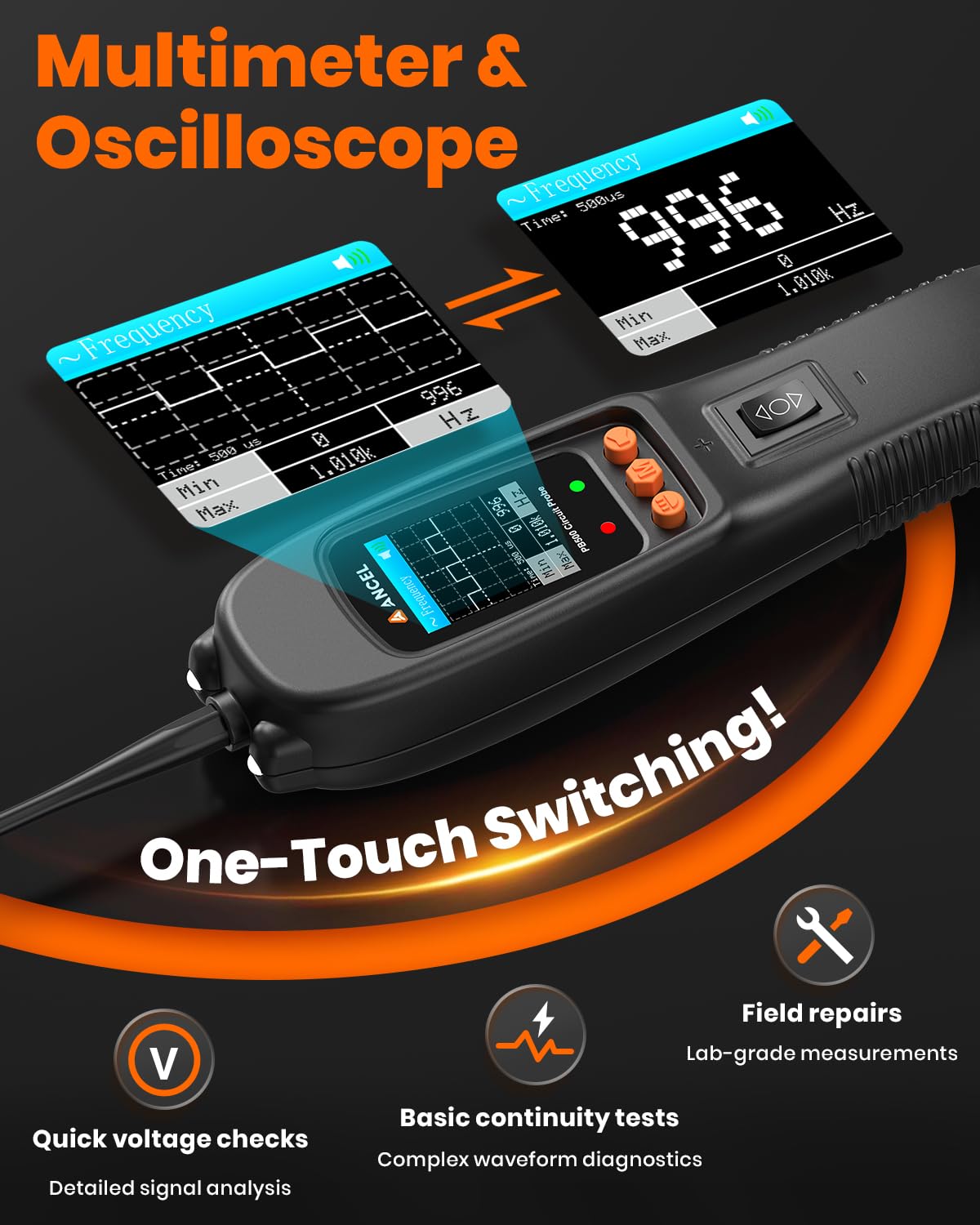

- Oscilloscope & Multimeter: PB500 allows you to switch smoothly between oscilloscope and multimeter modes, delivering clear waveforms and precise digital readings so you can diagnose with confidence. The multimeter offers fast, accurate measurements for Voltage(VDC), Resistance (OHM), Diode (DIO), Current (AMP), and Frequency. When you need deeper insight, the oscilloscope presents clean, real-time waveform graphs that instantly reveal signal fluctuations. Supporting AC/DC voltage, resistance, frequency, and duty cycle analysis, this advanced mode helps you verify sensor and actuator performance, detect weak signals, confirm circuit connectivity, and identify bad grounds with ease.
- Specialized Fuel Injection Tests: Struggling with the vehicle starting problems, poor acceleration, or fuel inefficiency? The he PB500 automotive circuit tester is fuel injection test Mode is designed for fast, precise diagnostics of the fuel injection circuit. It quickly analyzes the fuel delivery process, ensuring that each injector is firing precisely as it should. Plus, the addition of Frequency and Duty Cycle modes allows you to dig deeper into your vehicle's performance, uncovering issues that standard diagnostic tools can't detect, and giving you the insights you need to make accurate repairs and get your vehicle running at its best.
- Component Activation & Test: This automotive power circuit tester lets you activate and test on-board and off-board components with ease. It supports a wide range of vehicle systems, including blower motors, power window motors, windshield wipers, rear window defrosters, lights, radiator fans, and fuel injectors. By sending the required signal to each component, you can quickly determine whether it is functioning properly. Designed for both professional technicians and DIY enthusiasts, the tool works hand-held, in-vehicle, or with grounded connections, providing fast, accurate diagnostics and making electrical troubleshooting simple and reliable.
- Short-Circuit Tracking & Overload Protection: The PB500 circuit tester equipped with high-sensitivity probes, this ANCEL tester electric quickly tracks wiring issues and pinpoints short circuits or faulty wires to save serious troubleshooting time. Its resettable 10A circuit breaker protects both you and the vehicle by cutting power and sounding a buzzer when overload is detected. When tripped, the tool will not conduct battery current to the tip until reset—helping you avoid blown fuses and unnecessary repair costs.
- Quickly Identify Polarity & Highly Sensitive Probe: The ANCEL PB500 automotive electrical tools instantly checks component continuity and identifies positive, negative, and open circuits. When the positive terminal is connected, the red LED lights up with a beep; when the negative terminal is connected, the green LED illuminates with a low-pitched tone. Open circuits show no LED indication. Using red/green LEDs (active within ±0.8V) alongside the LCD display, the PB500 test light enables fast voltage detection—turning a simple polarity check into a reliable diagnostic tool.
- Continuity & Signal Testing: The ANCEL automotive short circuit finder quickly checks sensor operation and accurately verifies circuit continuity. It offers two easy testing methods: 1. Resistance Mode – A reading of 0.0Ω with the LED on confirms continuity; “OL” indicates an open circuit. You can even pierce wire insulation to test without disconnecting; 2. Power Switch Method – Apply power to the circuit; if the breaker trips, it signals low resistance and confirms continuity. Perfect for diagnosing broken wires, checking ground quality, and troubleshooting vehicle electrical systems with speed and confidence.
- Dual Headlights & Intuitive Backlit LCD Display: To be a proper solution for nighttime testing jobs, the PB500 automotive electrical tester comes with a lighting function to support your testing needs in a low-light environment. What's more, this PB500 circuit tracer with highly clear LCD digital backlit display screen, a resolution of 0.1V, clear & visible digital readouts for day and night. Easy to read AVOmeter allows you to read voltage, current and resistance at the fingertip.
- Top-Ranked Automotive Electrical Tester: The ANCEL PB100 electrical circuit tester is one of the most versatile automotive electrical tools on the market—highly recommended by auto electrical specialists worldwide. It delivers all the functionality of premium testers like the P.P.3/P.P.4, but at nearly half the price! ANCEL test probe provides 30-day f*ree r*efunds & ex*changes, 1-year w*arranty, 24/7 professional customer service. If you have concerns about the automotive electrical tester, please reach us firstly via for assistance. We will help you till are satisfied.
| Color | Black PB500 |
|---|---|
| Model | PB500 |
| Brand Name | ANCEL |
| Style Name | 1 |
| Manufacturer | ANCEL |
| Power Source | Vehicle 12v/24v Battery Power Supply Or External 12/24v Battery; 24/7 Assistance Via Amazon @ Ancelt Ech C Om. |
| Item Dimensions | 10.23 x 8.85 x 2.95 inches |
| Measurement Type | Diode Tester, Multimeter, Ohmmeter, Voltmeter |
| Specification Met | CE, RoHS, UL |
| Included Components | Super Probe Circuit Tester; Long Probe Tip; Short Probe Tip; Puncture Needle; |
| Upper Temperature Rating | 140 Degrees Fahrenheit |
| Maximum Operating Voltage | 24 Volts |
| Minimum Operating Voltage | 12 Volts |
