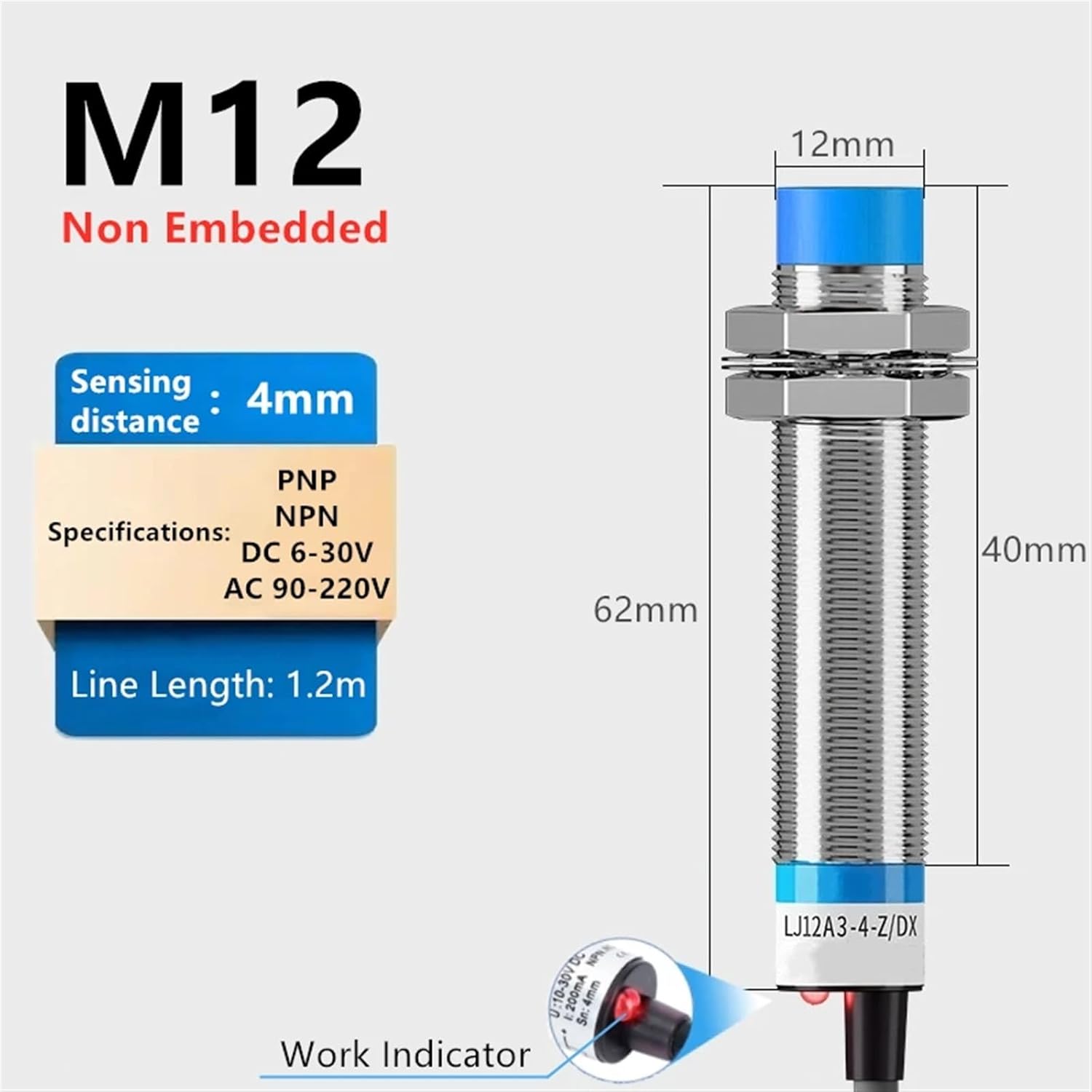

M12 Metal Induction Proximity Switch 3 Wires 24V Normally Open LJ12A3-4-Z/BX Inductive NPN Sensor Common Types Economical (Color : Non Embedded, Size : 3 Wires NPN_Normally Open)
Product details
| Management number | 211038774 | Release Date | 2026/04/04 | List Price | $14.66 | Model Number | 211038774 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||

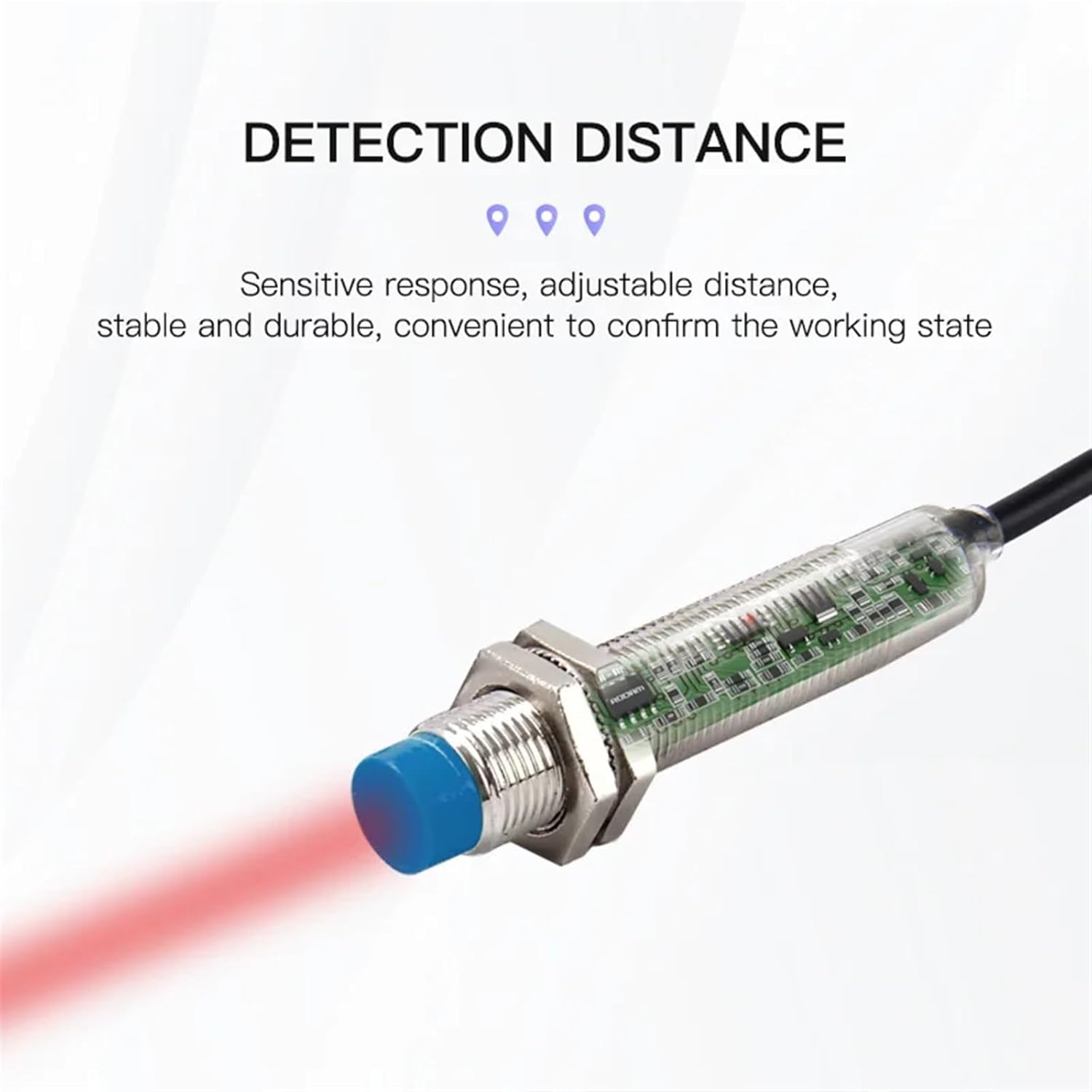

Proximity Sensors[Main Parameter]Detection distance: 2mm/4mm ± 10%Set distance: 0~3.6mmCurrent: 5V 360mA, 12V 200mA, 24V 96mA, maximum instantaneous current 2ADelay distance: 10% below of the detection distanceDetection object: Magnetic metal(the detection distance decreases when it is non-magnetic metal)Stand detection object: Iron 15*15*1mmResponse frequency: DC:0.5kHzSupply voltage: DC type:DC12V DC24V DC36V(5~36V)impulse(p-p)10% belowWithstand voltage: AC1000V 50/60Hz 1min between charging part and housingMeterial: (Housing:Nickel plated brass) (Detection surface:ABS)Protection influence: IP67(IEC specification)This product can be applied to control relays, counters,PLC, etc.!
- Proximity Sensors
- M12 Metal Induction Proximity Switch 3 Wires 24V Normally Open LJ12A3-4-Z/BX Inductive NPN Sensor Common Types Economical
| Color | Non Embedded |
|---|---|
| Model | JDOUNFMO |
| Brand Name | JDOUNFMO |
| Unit Count | 1.0 Count |
| Item Weight | 50 Grams |
| Manufacturer | JDOUNFMO |
| Material Type | Metal |
| Number of Items | 1 |
