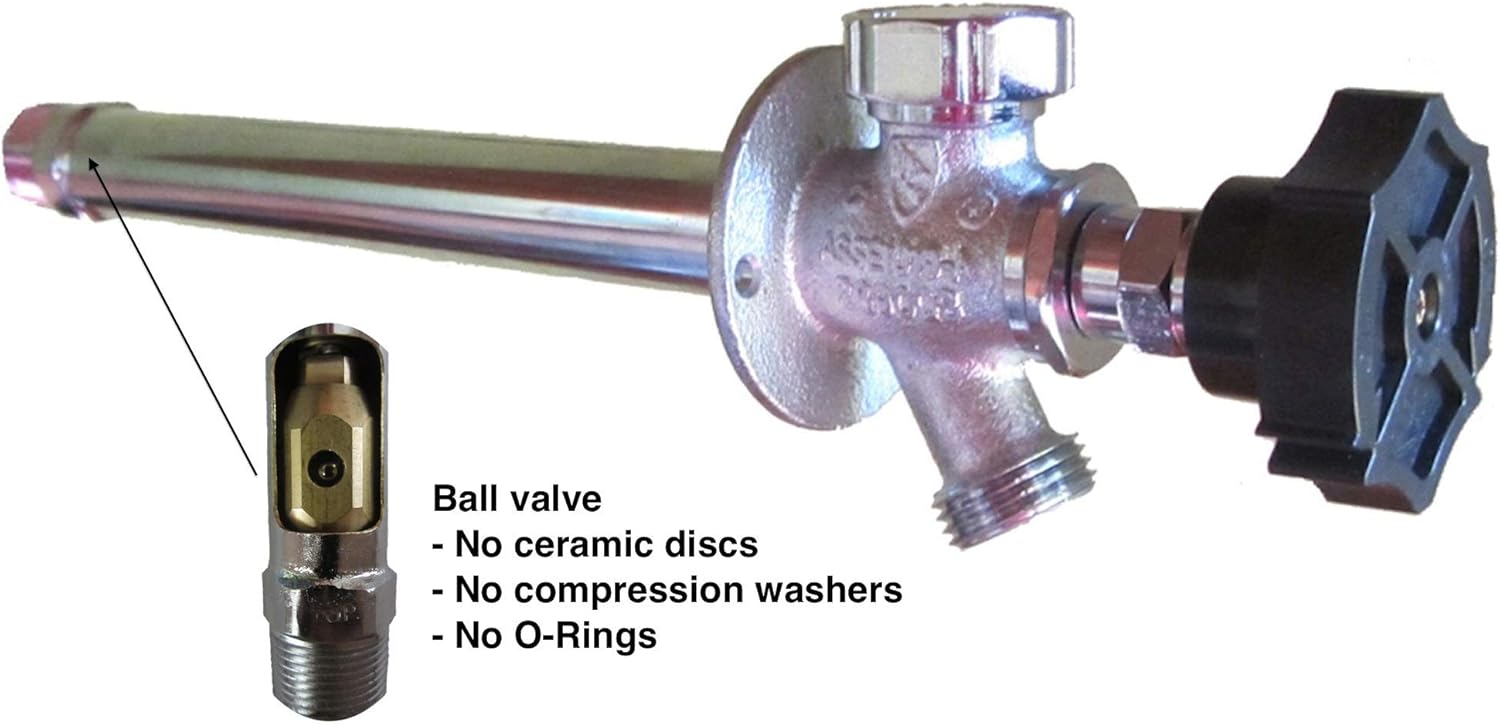

QB-106MC; ¼-Turn Ball Valve Frost Proof Sillcock; 6" wall thickness; ½" m.p.t. x ½" copper swt inlet connection
Product details
| Management number | 210757876 | Release Date | 2026/04/02 | List Price | $24.98 | Model Number | 210757876 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
Innovative thinking by Quarter Ball has moved the historically proven frostproof sillcock into the modern age. Rugged ¼-turn ball valve construction has been combined with the frostproof layout. There are no compression washers, no ceramic discs, and no O-Rings – only a solid brass cartridge and chrome plated ball with custom valve seats tested to over 290,000 on/off cycles. The ball valve cartridge, patented by Quarter Ball, couples easy to use ¼-turn operation with heavy-duty components. These frostproof sillcocks are designed to stand up to the most demanding environments. Anti-siphon & anti-backflow design is fully approved in the United States & Canada: CSA B125.1-11/ASME A112.18.1-2011 ASSE 1019-A cUPC/IAPMO The water shutoff point of the frostproof sillcock needs to be in a heated area of the structure.
- Rugged ball valve construction - tested to over 290,000 On/Off Cycles
- ¼-turn convenience - Ergonomic handle for left or right hand operation
- Solid brass cartridge - no ceramic discs, no compression washers, no O-Rings
- Fully code approved with both anti-siphon & anti-backflow protection; Patented - U.S. & Others
- Enclosed screw holes with built-in drainage pitch
| UPC | 616906673455 |
|---|---|
| Size | 6" wall thickness; ½" mpt x ½" copper swt inlet |
| Brand Name | Quarter Ball |
| Unit Count | 1.0 Count |
| Valve Type | Ball Valve |
| Thread Size | ½ inch |
| Thread Type | Male |
| Manufacturer | Quarter Ball |
| Model Number | QB-106MC |
| Material Type | Brass |
| Connector Type | Threaded |
| Exterior Finish | Chrome,Copper |
| Item Dimensions | 16 x 3 x 4 inches |
| Number of Ports | 2 |
| Specification Met | ASSE 1019-A; CSA B125.1-11/ASME A112.18.1-2011; cUPC/IAPMO |
| Inlet Connection Type | Compression |
| Manufacturer Warranty Description | Two year limited warranty |
